Product details:

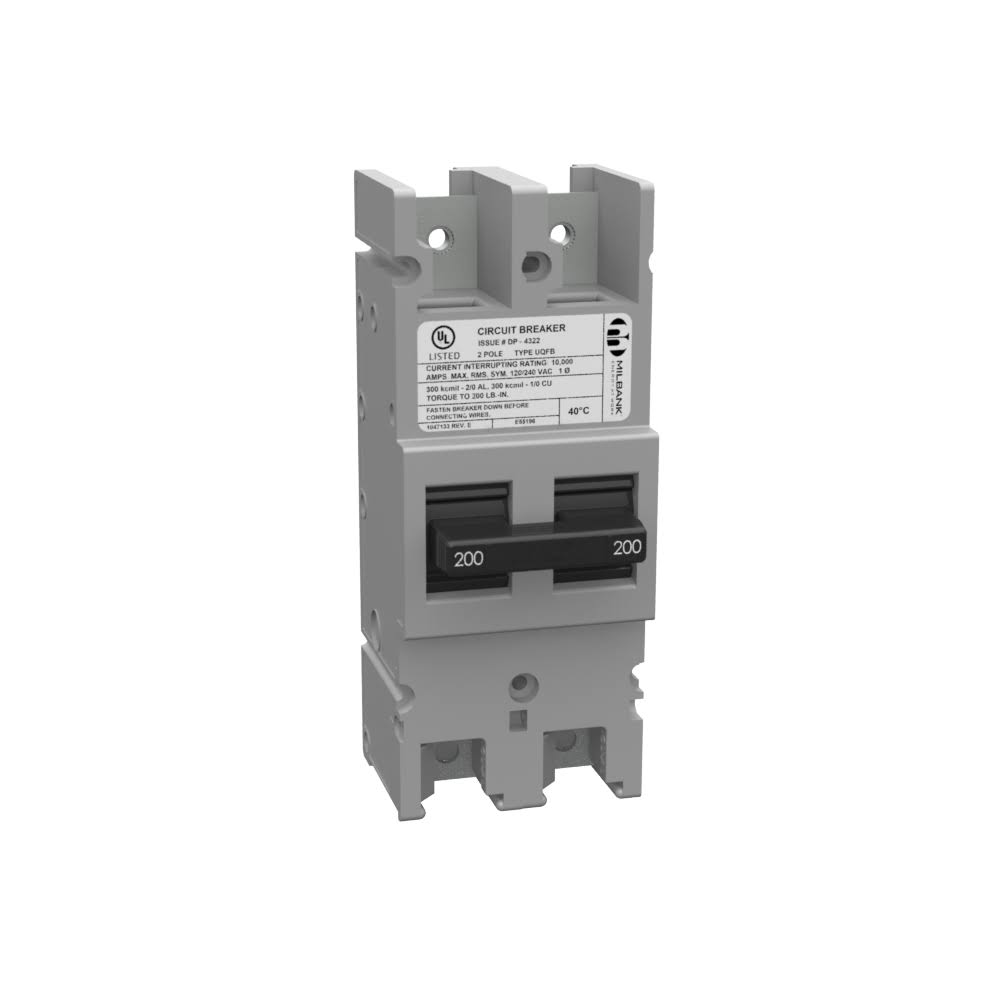

Milbank UQFB-Series 2-Pole Circuit breaker features 16-gauge shell constructed of G90 galvanized steel housing and comes with light gray polyester powder coat finish. It is ideal to use in conjunction with 320 Amps, 1-Phase meter socket and main breaker. It measures 3 Inch x 2-11/16 Inch x 7-7/16 Inch. Breaker is designed to accommodate wire of size 1/0 - 300-kcmil copper, 2/0 - 300 kcmil aluminum and has lever actuator. It features flush trim kits that are used to change a meter enclosure from a surface mount to a semi-flush and has two lugs provided on load/line side. Breaker is designed in such way that front/back covers are removable and features bolt-on mounting for proper installations. It has voltage rating of 200 Amps with 120/240 Volts and frequency of 60 Hz. F-Frame breaker is provided with trip that is made of thermal magnetic and has interrupt current of 10 kilo-Amps. It has two poles with manual reset and a terminal lug connection. Breaker can withstand temperature range of 40 deg C. Breaker is UL listed. Product Specification Actuator Lever Application Metering Accessory Auxiliary Contacts No Auxiliary Contacts Brand Milbank Catalog Description MILBANK 200 AMP 2 POLE 240 VOLT BOLT-ON 10K AIC LINE TANG WITH QUARTER TWENTY INSERT Connection Lug to Lug Current Rating 200 Frame F-Frame Frequency Rating 60 00784572193611 Height 7.4380 Height Unit IN Interrupt Rating 10, 000 Ampere Interrupting Capacity Item Status A Length 3.2810 Length UOM IN Material Non-Metallic Mfr.
